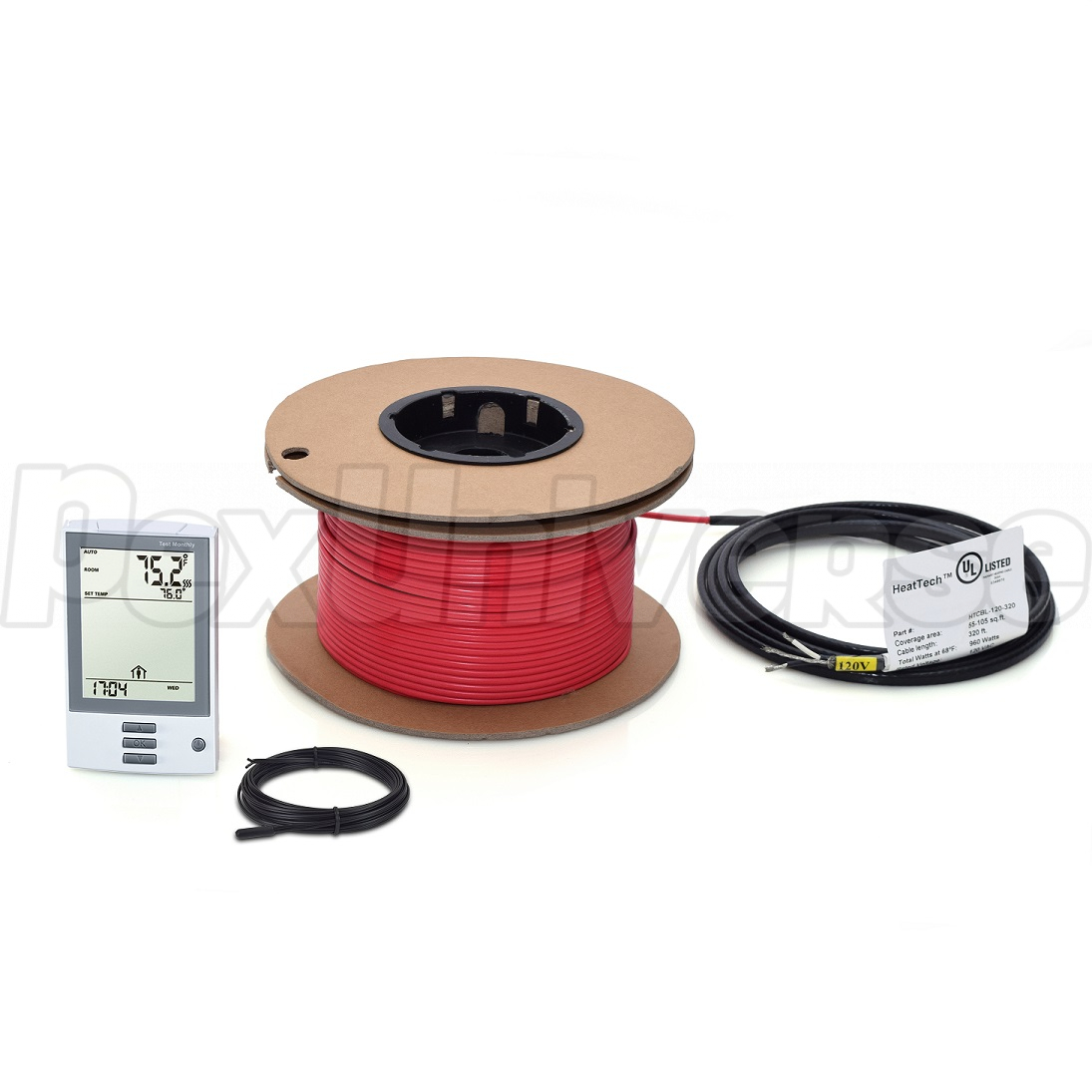

Bring comfortable radiant warmth to your floors with the HeatTech 240V Electric Floor Heating Cable Kit. This complete in-floor heating system includes a 560-ft electric heating cable, 7-day programmable OJ Electronics thermostat with built-in 5 mA GFCI protection, floor temperature sensor, cable guides, and installation manual.

Designed for flexible installation, the 560-ft heating cable covers up to 140 sq. ft. at the recommended 3-inch spacing. Coverage can be configured for approximately 95 sq. ft. at 2-inch spacing or up to 190 sq. ft. at 4-inch spacing, depending on the installation layout and desired heat output.

The 240V system delivers 1,680 watts with a 7-amp load and is designed for electric radiant floor warming applications. The loose heating cable allows installers to create a customized layout around fixtures, walls, and other floor features instead of being limited to a fixed-size heating mat.

The included programmable GFCI thermostat provides convenient temperature control and scheduling, while the floor sensor helps regulate floor temperature. Cable guides are included to help position and secure the heating wire during installation.

Kit Includes

• 560-ft 240V electric floor heating cable
• OJ Electronics UDG-4999 7-day programmable thermostat with 5 mA GFCI
• 15-ft floor sensor

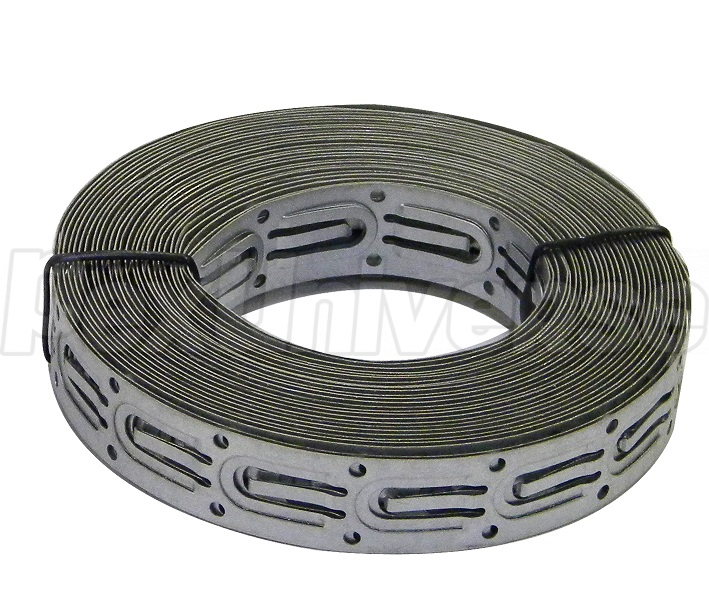

• Three 25-ft rolls of cable guides
• Installation manual

Specifications

• Voltage: 240V
• Cable Length: 560 ft
• Power: 1,680 watts
• Load: 7 amps
• Recommended Coverage: 140 sq. ft. at 3-inch spacing
• Coverage: 95 sq. ft. at 2-inch spacing
• Maximum Coverage: 190 sq. ft. at 4-inch spacing

Ideal for electric radiant floor warming projects where flexible cable placement and programmable temperature control are desired. Always follow the installation manual and applicable electrical and building codes.
