Electric Floor Heating Mat – Ultra-Thin, Flexible & Easy to Install

Everything you need for a complete 160 sq ft heated floor — in one kit.

This 240V electric radiant floor heating mat kit delivers 1,920 watts of even, silent warmth beneath tile, stone, marble, granite, laminate, engineered wood, or vinyl floors. At just 1/8" thick, the heating cable won't raise your floor height — ideal for both renovations and new construction.

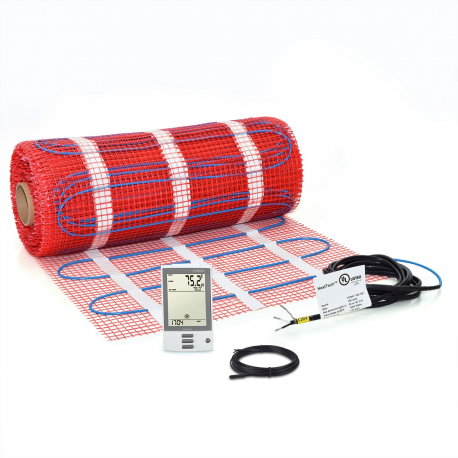

Kit Includes

• HTMAT-240-160 electric floor heating mat — 20" wide × 97.5 ft long, 8A, 1920W, 12 W/sq ft (41 BTU/sq ft)
• OJ Microline UDG-4999 thermostat — 7-day programmable, built-in Class A GFCI (5mA) with self-testing mode, dual air/floor sensing, C-UL-us listed for wet rooms
• OJ floor sensor with 15 ft leads
• Installation manual

Fast, DIY-Friendly Installation

Self-adhesive fiberglass mesh backing holds the mat flat without stapling or gluing. Cut the mesh — never the heating cable — to navigate turns, doorways, and irregular layouts. Cable arrives pre-spaced at 3" intervals for optimal heat distribution and can be adjusted to 2" or 4" for optimal room coverage. A single 10 ft cold lead connects directly to the thermostat — no extra wiring required.

Built-In Safety & Long-Term Reliability

• Zero EMF dual-conductor design
• UL listed for USA and Canada, including wet-location installations
• 25-year manufacturer warranty on the heating mat
• 3-year warranty on the thermostat

Scalable to Larger Spaces

Combine multiple 240V mats in parallel to heat up to 300 sq ft using a single thermostat (maximum combined load: 15A). Compatible with all major floor-sensing thermostats.
