Complete 40 sq ft In-Floor Heating System for Tile & Stone

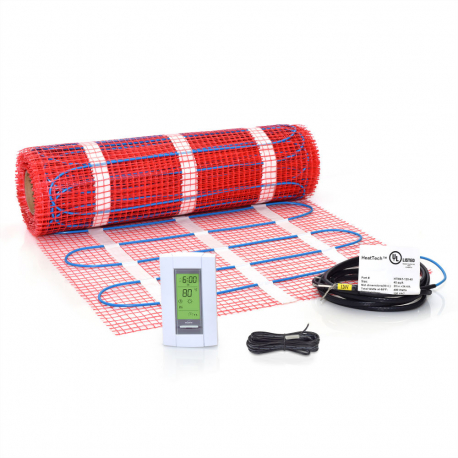

The HeatTech 40 sq ft Electric Radiant Floor Heating Mat Kit (120V) is a complete, ready-to-install radiant heating system for bathroom floors, kitchen floors, standing showers, mudrooms, and any tile or natural stone surface. The kit includes a pre-spaced electric heating mat, a Honeywell/Aube 7-day programmable floor-sensing thermostat, a compatible floor sensor, and a full installation manual — everything needed from subfloor to finish in a single purchase.

Thin, Low-Profile Installation

At approximately 1/8" thick, the heating cable embeds under tile without noticeably raising the finished floor height — a critical factor in renovation and retrofit projects. The self-adhesive fiberglass mesh backing adheres firmly to any clean, smooth subfloor without staples, and can be repositioned during installation as needed. Heating cable comes pre-spaced at 3" intervals for consistent, even heat across every square foot of coverage.

To navigate around toilets, vanities, shower bases, or irregular room shapes, simply cut the red fiberglass mesh — never cut the blue heating cable — and rotate or fold the mat as needed. A single 10 ft armored cold lead runs up the wall to the electrical box, keeping the wiring connection straightforward.

Honeywell/Aube Thermostat with Floor Sensing

The included TH115-AF-GA by Honeywell/Aube is an industry-standard floor-sensing thermostat trusted by professional installers and DIYers alike. By reading floor temperature directly through the included sensor — rather than ambient room air — it responds faster and maintains more accurate, consistent comfort than a standard air-sensing thermostat.

Set up to 7 days of custom heating schedules to match your household routine. Running the system on a programmed schedule reduces energy use by 10–30% compared to a non-programmable thermostat. A single thermostat supports up to 150 sq ft of combined 120V mat coverage, so the system can grow with future projects.

Quiet, Clean, Even Heat — From the Floor Up

Unlike forced-air heating, radiant floor heat warms objects and people directly from the surface up — with no fan noise, no airborne dust, and no dry air. The system operates silently and invisibly beneath your finished floor, making it especially well-suited for bathrooms, allergy-sensitive households, and any space where air quality and comfort matter.

Where It's Used

Rooms:

• Bathrooms
• Kitchens
• Standing Showers
• Mudrooms
• Laundry Rooms
• Saunas
• Entryways
• Sunrooms

Compatible Flooring:

• Ceramic Tile
• Porcelain Tile
• Natural Stone
• Granite
• Marble
• Slate

Expandable to 150 sq ft

Multiple 120V HeatTech mats can run from a single thermostat — up to 150 sq ft total — making it easy to expand into an adjacent area or phase in additional coverage over time without adding a second controller.
